Rotary SPO10N16T7 : 10,000 LB Symmetric 2-Post Lift - Trio Truck Adapters - 2' Height Ext.

Write a Review
$8,918.00
SKU: SPO10N16T7
Capacity: 10000
Configuration: Symmetric
Design: Two-Post
Overall Height: 164''
Overall Width: 138''
Inside Columns: 103''
Colors: Red
Colors: Blue
Colors: Black
Country of Origin: USA
Selected 3 Color Options is
Adding to cart… The item has been added

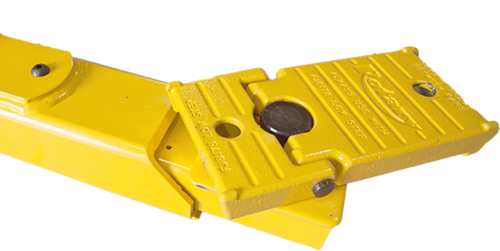

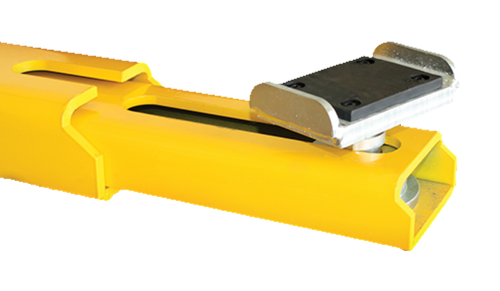

For over 30 years, Rotary Lift has built quality into every two-post they've designed. With features like the original single piece double S shaped column, true asymmetric columns, three-position flip-up adapters, available 3-stage arms with thread-up or truck adapters and extended height models, the SPO10 delivers everything your shop needs. Supercharge your lift with Shockwave and get 2x faster rise and descent, Spotline assisted vehicle spotting, and 110v DC power. Features: - True Symmetrical column design - Customizable with your choice of arms and adapters - Extended height models available for added versatility - ALI Gold Certified (SPO10X) Available with Shockwave (SPO10SW). Designed Specifically For Bays Where Service Speed Is Paramount, Shockwave Equipped Lifts Are The Fastest In The World! - 2X Faster Rise And Decent - DC Power With Onboard 110v Charger - Spotline Motion Activated Laser
SpecificationSPO10-FASPO10-TASPO10-RASPO10SW-FASPO10SW-TASPO10SW-RA
AdaptersFlip UpTruckRoundFlip UpTruckRound
Capacity10,000 lbs.10,000 lbs.10,000 lbs.10,000 lbs.10,000 lbs.10,000 lbs.
Rise78 1/4″80 1/4″76 7/8″81 1/4″83 1/4″79 7/8″

Base SPO10 Overall Height

11′ 8 1/2″

11′ 8 1/2″

11′ 8 1/2″

11′ 8 1/2″

11′ 8 1/2″

11′ 8 1/2″

Base SPO10 Required Ceiling Height

12′



12′ 4″

12′ 4″

12′ 4″

Overall Width11′ 5 1/2″11′ 5 1/2″11′ 5 1/2″11′ 5 1/2″11′ 5 1/2″11′ 5 1/2″
Drive-Thru Width8′ 6 1/2″8′ 6 1/2″8′ 6 1/2″8′ 6 1/2″8′ 6 1/2″8′ 6 1/2″
Front Arm Min/Max31″-54″27 1/2″-59″27 1/2″-59″31″-54″27 1/2″-59″27 1/2″-59″
Rear Arm Min/Max31″-54″27 1/2″-59″27 1/2″-59″31″-54″27 1/2″-59″27 1/2″-59″
Min. Adapter Height4 3/4″4 3/4″3 5/8″4 3/4″4 3/4″3 5/8″
Motor2 HP2 HP2 HP5 HP5 HP5 HP
Voltage208v-230v208v-230v208v-230v110v110v110v
Time of Full Rise/Decent45 secs./40 secs.45 secs./40 secs.45 secs./40 secs.25 secs./19 secs.25 secs./19 secs.25 secs./19 secs.
Min. Bay Size12’x24′12’x24′12’x24′12’x24′12’x24′12’x24′
