Rotary SM30N012 : Drive-On Four Post Lift, 307" Long

Name: Rotary SM30N012 : Drive-On Four Post Lift, 307" Long
Brand: Rotary Lift
SKU: SM30N012
Price: 36313 USD
Availability: InStock

Rotary Lift

$36,313.00

Write a Review

SKU:: SM30N012
Capacity:: 30000
Type:: Closed-Front
Type:: Heavy Duty

Product Description

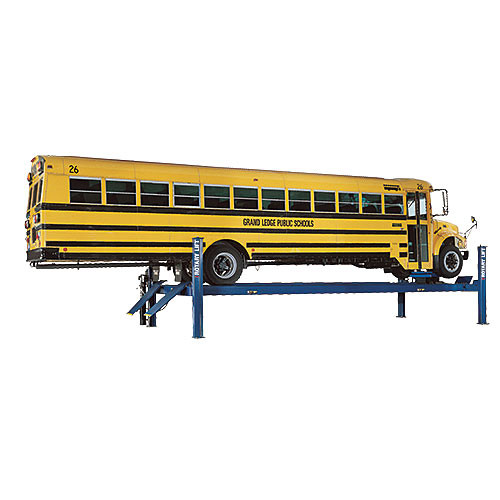

Rotary SM30EL : 30,000 lb. Closed Front Heavy Duty 4 Post Lift

Perfect solution for Ford, GM and Dodge mid- and heavy duty trucks.

Versatility: it’s the standard to which Rotary Lift’s four-post lifts are built. These lifts handle cars, vans, trucks – even light and medium duty commercial vehicles with ease. If you service a wide variety of vehicles, Rotary four-post lifts are the right choice for maximum productivity.

Cylinder located under the runway
Dual function Sentinel Lock™ System
Internal airline
Adjustable latch bars
ALI Gold Certified (SM30N0-X)

Specifications
Specifications

Specifications

Specificaiton	SM30	SM30-L	SM30-EL
Max. Wheelbase	235″	271″	307″
Rise	68″	68″	68″
Length Overall	25′ 8 1/8″	28′ 8 1/8″	31′ 8 1/8″
Width Overall	12′ 4 13/16″	12′ 4 13/16″	12′ 4 13/16″
Inside of Columns	132″	132″	132″
Between Columns	249″	285″	321″
Height of Columns	7′ 3/4″	7′ 3/4″	7′ 3/4″
Width of Runways	24″	24″	24″
Height of Runways	8 3/8″	8 3/8″	8 3/8″
Width Between Runways (min.)	41″	41″	41″
Width Between Runways (max.)	48″	48″	48″
Lifting Capacity	30,000 lbs.	30,000 lbs.	30,000 lbs.
Motor	4 HP	4 HP	4 HP
Voltage Single Phase	208v-230v	208v-230v	208v-230v
Time of Full Rise	105 seconds	105 seconds	105 seconds
Min. Bay Size	16’x30′	16’x33′	16’x36′

Specifications

Capacity 30000

Type Closed-Front

Type Heavy Duty
