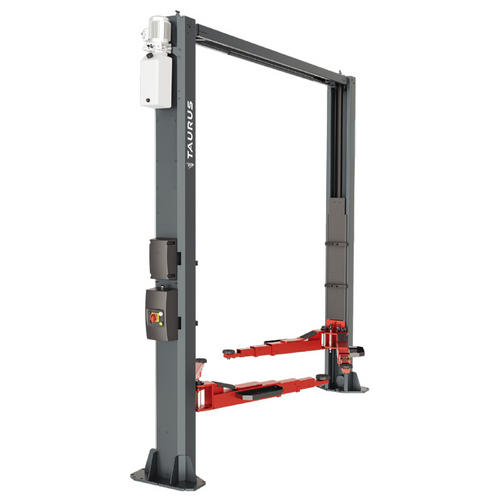

Taurus STx55 : 12,000 LB 2-Post Lift w/ 3-Stage Arms

Write a Review
$7,880.00
SKU: TSTX55
Capacity: 12000
Configuration: Symmetric
Design: Two-Post
Overall Height: 145"
Overall Width: 150"
Inside Columns: 122"
Colors: Gray / Red
Adding to cart… The item has been added

The STX55 is a premium 2-Post Lift w/ 12,000 LB Lifting Capacity. Best-in-class strength and reach make this an ideal lift for 1-ton and medium-duty applications. The column uses a patented 8-bend structure reinforced for maximum strength. The unique locking system uses an electromagnetic structure with zero faults. Carriage and support arms are equipped with protective rubber. The best lift you can buy for the money.

•    Symmetric posts
•    Very stable bent posts
•    Direct lowering can be set without lifting from the safety catch
•    Second (slower) lowering speed is adjustable
•    Double door-stop
•    Pushbutton control unit with alarm signal
•    Adjustable end stop and upper protection bar
•    Mechanic synchronization
•    Electrical safety ratchet system (expensive compressed air not required)
3-Stage Arms:
•    Double telescopic front and rear arms
•    Automatic arm locking system
•    Low minimum height
•    Suitable for passenger cars up to big vans and transporters



Lifting Capacity : 12,000lbs (5500kg)

Lifting Time : 45s

Lowering Time : 45s

Lifting Height : 73"

Lowered Pad Height : 4.5"

Overall Width : 159.56" (including pump motor)

Overall Width : 155.6299 (outside baseplate)

Drive-thru Clearance : 116.34"

Power Requirements: 220volt / 1-Phase / 30amp
