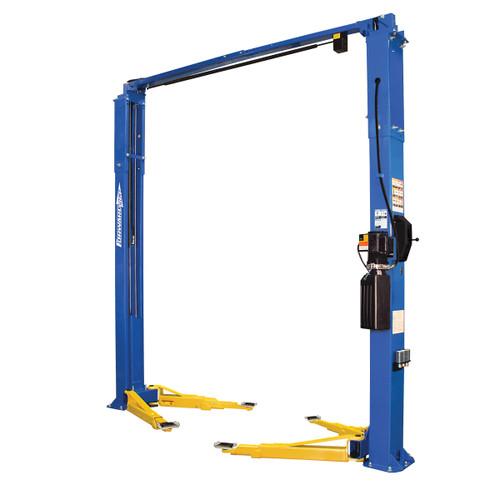

Quest STx45 : 10,000 LB 2-Post Lift w. Xsymmetric Arms

Premium 2-Post Lift with superior column and arm design for all types of vehicles. Xsymmetric configuration is the only 3-Stage Front/Rear allowing for Asymmetric Column design, but with the safety and versatility of a symmetric lift. Double layered columns provide unsurpassed strength and rigidity when servicing all vehicle types within rated capacity.

Columns:

• Asymmetric or Symmetric Column Installation vehicles can be positioned far to the rear, for better door-opening angle
• Double Layer Welded Columns Provide “Best-in-class” Stability
• Overhead Safety Switch and Optional Limit Switch for Additional Safety
• Overall Height 166.33"
• Carriage with optimized sliding block bearing for low friction
• Double door-stop mounted on carriage
• Electro-Magnetic lock release
• Mechanic synchronization via steel cables

Arms:

• Universal lifting area from small passenger car up to long wheel base with appropriate truck adapters
• Parallel parking of arms for easier and faster positioning of vehicles
• Arms can be opened more than 180° for better drive-in situation for lifts installed in 90° angle to the drive lane
• Low minimum height
