Haweka HW280 400 139 : ProMax MD Expert 40mm

Pro Max MD Expert - Centering Solutions for All 8 & 10 Lug Medium Duty Vehicles

• Expert Centering Solution for 8 and 10 lug Medium Duty Applications
• Hub Pilot Discs replicate vehicle hub exactly for expert mounting solution
• One lug adapter with long plug-in studs for all MD applications
• Problem solving solution for Chevy/GMC 8x180 and 8x210 applications
• Problem solving solution for Ford 8x170, 8x200 and 10x225 applications
• Problem solving solution for all 8x6.5 applications
• Application chart for plate and collet look up by vehicle included

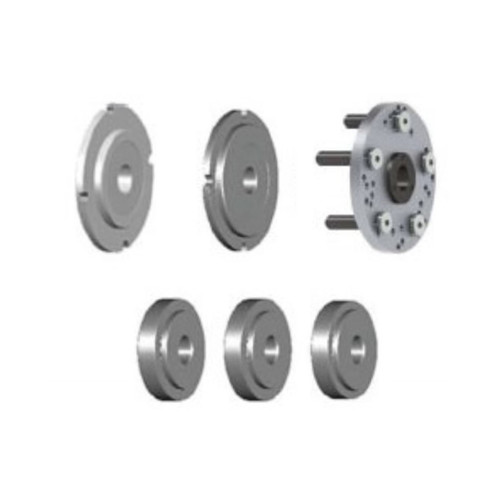

Scope of Delivery:

• Adapter 1 - MD Flange Plate with Studs 1 HW700 400 037: 6 x 205, 8 x 6.5” (165.1mm), 8 x 170, 8 x 180, 8 x 200, 8 x 210, 8 x 225, 10 x 225, 10 x 7.25” (184.15mm)
• Hub Pilot Disc 1 1 HW160 400 047: Hub Bores: 4.88” (123.95mm) / 4.92” (125.1mm)
• Hub Pilot Disc 2 1 HW160 400 048: Hub Bores: 5.59” (142.1mm) / 6.69” (170.1mm)
• Hub Pilot Disc 5 1 HW190 400 062: Hub Bore: 4.6” (116.8mm)
• Hub Pilot Disc 6 1 HW190 400 071: Hub Bore: 4.77” (121.1mm)
• Hub Pilot Disc 7 1 HW160 400 067: Hub Bores: 4.88” (124mm) / 6.06” (154mm)
