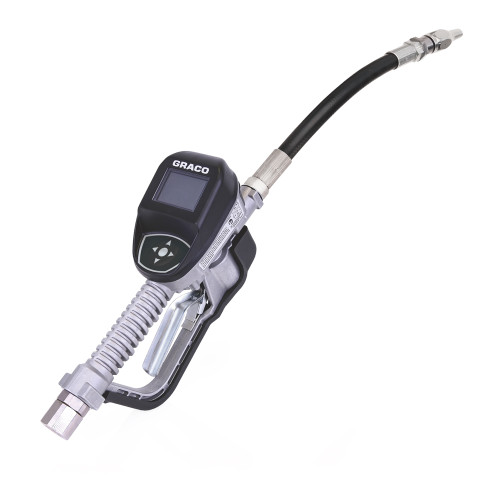

Graco 26C354 : SDP8 1/2" Inlet Electronic Preset Oil Meter
Write a Review
Write a Review
Graco
Graco 26C354 : SDP8 1/2" Inlet Electronic Preset Oil Meter
$1,214.08
SKU:
26C354
Extension Type:
Flexible
GPM:
8
Inlet Size:
1/2 in.
Graco's premium SD meters were designed from the ground up to provide the best user experience. These robust meters feature high flow, improved ergonomics and a large high-contrast LCD screen to make viewing dispense amounts easy in all lighting conditions.
Features:
- Upgradeable”SD Preset meters are compatible with PULSE FC fluid control system
- Large, Intuitive Display”high-contrast display for low and bright light conditions
- Long valve life”cartridge spool valve specifically designed to reduce wear and reduce costly down time
- Ergonomic”four-finger trigger and easy-to-use button pad reduce worker fatigue
- Reliable”time-tested Graco engineering
- Durable”Thick cast aluminum body allows this meter to endure harsh, heavy-duty applications
- Long battery life”uses 4 AA easy-to-replace batteries
Technical Specifications
| COMPATIBLE MATERIAL | Oil, ATF |
|---|---|
| DISPENSE TYPE | Preset |
| DISPLAY TYPE | Electronic |
| EXTENSION TYPE | Flexible |
| FLUID INLET THREAD GENDER | Female |
| FLUID OUTLET THREAD GENDER | Female |
| INCLUDES | 喷嘴,柔性扩展, ノズル、フレックスエクステンション, Nozzle, Flexible Extension, Boquilla, extensión flexible, 노즐, 연성 연장 |
| INLET SIZE (CM) | 1.27 |
| INLET SIZE (IN) | 1/2 |
| INLET SIZE (MM) | 12.7 |
| INLET THREAD TYPE | NPT |
| MAXIMUM FLOW RATE (GPM) | 8 |
| MAXIMUM FLOW RATE (L/MIN) | 30 |
| MAXIMUM OPERATING TEMPERATURE (°C) | 70 |
| MAXIMUM OPERATING TEMPERATURE (°F) | 158 |
| MAXIMUM RECORDED DISPENSE | 9999 |
| MAXIMUM STORAGE TEMPERATURE (°F) | 158 |
| MAXIMUM STORAGE TEMPERATURE (°C) | 70 |
| MAXIMUM WORKING PRESSURE (PSI) | 1500 |
| MAXIMUM WORKING PRESSURE (KPA) | 10340 |
| MAXIMUM WORKING PRESSURE (BAR) | 103.4 |
| METER ACCURACY (%) | ±0.5 |
| OVERALL HEIGHT (CM) | 14.6 |
| OVERALL HEIGHT (IN) | 5.75 |
| OVERALL HEIGHT (MM) | 146 |
| OVERALL LENGTH (CM) | 33 |
| OVERALL LENGTH (IN) | 13 |
| OVERALL LENGTH (MM) | 330 |
| OVERALL WIDTH (CM) | 9.5 |
| OVERALL WIDTH (IN) | 3.75 |
| OVERALL WIDTH (MM) | 95 |
| METER TECHNOLOGY | 椭圆齿轮, オーバルギア, Oval Gear, Engranaje oval, 오발 기어 |
| METERING GUN WEIGHT (LB) | 5.3 |
| METERING GUN WEIGHT (KG) | 2.4 |
| MINIMUM FLOW RATE (GPM) | 0.25 |
| MINIMUM FLOW RATE (L/MIN) | 0.9 |
| WETTED MATERIAL | Aluminum, Stainless Steel, PBT/PC, Zinc, Nitrile Rubber, CS |
| WARRANTY | 结构组件 5 年,电子设备 3 年,磨损部件 1 年, 5 年間の構造部品、3 年間の電子機器、1 年間の消耗部品, 5 Years Structural Components, 3 Years Electronics, 1 Year Wear Parts, 5 años de componentes estructurales, 3 años de componentes electrónicos, 1 año de piezas de desgaste, 구조 부품에는 5년, 전자 장치에는 3년, 마모 부품에는 1년 |
| UNIT OF MEASURE | Quart, Pint, Gallon, Liter |
| TRIGGER PROTECTION TYPE | Guard |
| TRIGGER LOCK | Locking |
| RECOMMENDED ENVIRONMENT | Indoor |
| OUTLET THREAD TYPE | Straight Thread O-Ring Boss |
| NOZZLE TYPE | Oil Automatic Quick-Close |
| MINIMUM OPERATING TEMPERATURE (°F) | 4 |
| MINIMUM OPERATING TEMPERATURE (°C) | -16 |
| TYPE | Electronic Metered Dispense Valve |
| VALVE TYPE | Metered |
| MAXIMUM WORKING PRESSURE (MPA) | 10.3 |
| PRODUCT TYPE | Meter |
| MODEL | SDP8 |
