Forward I12N303 : 12,000 LB 3 Stage Symmetric 2-Post Lift - 143" Height

Name: Forward I12N303 : 12,000 LB 3 Stage Symmetric 2-Post Lift - 143" Height
Brand: Forward Lift
SKU: I12N303
Price: 9970 USD
Availability: InStock

Forward Lift

$9,970.00

Write a Review

SKU:: I12N303
Capacity:: 12000
Configuration:: Symmetric
Design:: Two-Post
Overall Height:: 143''
Overall Width:: 140''
Inside Columns:: 115''
Colors:: Red
Colors:: Blue
Country of Origin:: Asia

Product Description

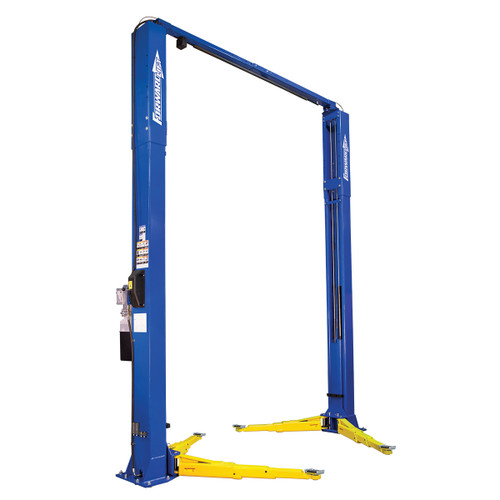

Forward's I12PRO two-post lift is gold certified with a 12,000 pound capacity for raising most passenger cars, trucks and vans. With two heavy-duty push hydraulic cylinders designed to increase lift performance and minimize down-time. Cylinders are located in each column concealed within the carriage itself. A durable powder coat finish provides exceptional protection from the wears a shop will see over the years. Forward's spring operated arm restraints are just one feature that keep these heavy duty lift arms constantly performing at their peak performance.

Features:

143" Overall Height
Hydraulic cylinders in each column
Full Stroke
Cylinder rod concealed inside carriage
75-3/4" Rise | 80-3/4" (With 5" adapter extensions)
3 Stage arm design
Door Bumper Kits Standard
Overhead cable equalization
Single Point lock release
Large rubber-padded drop-in adapter with extra height extensions (1.75", 3.5" and 5") are standard
Spring operated arm restraints, disengage at floor level
Padded overhead height limit switch bar
Durable powder coat finish

Specifications
Specifications

Specifications

Specifications	I12PRO
Capacity	12,000 lbs. (5443kg)
Rise Maximum Rise	77 1/2″ w/ 5″ extension
Adjustable Overall Height Options	13′ 10″ Standard Height (i12N300) 14′ 10″ Extended Max. Height (i12N301) 12′ 10″ (i12N302) 11′ 11″ (i12N303)
Overall Width	11′ 8″ or optional 12′ 2″
Drive Through Clearance	102 3/4″ or optional 108 3/4”
Overhead Switch Height Options	I12N300 160 1/8″ Standard I12N301 172 1/8″ Extended I12N302 148 1/8″ I12N303 137 1/8″
Front Arm Reach (Min./Max.)	27-3/4″ min / 59″ max (705mm / 1460mm)
Rear Arm Reach (Min./Max.)	27-3/4″ min / 59″ max (705mm / 1460mm)
Lifting Pad Height (Min./Max.)	4-3/4″ (121mm) with no extension 9-3/4″ w/ 5″ extension (248mm)
Width Between Columns	114 7/8” Standard 120 7/8″ Optional
Motor/Phase	2HP / 1PH
Voltage/Amps	208-230V, 17 amps
Speed of Rise	60 seconds
*Lifts available in blue (BL) and red (RD)

Specifications

Capacity 12000

Configuration Symmetric

Design Two-Post

Overall Height 143''

Overall Width 140''

Inside Columns 115''

Colors Red

Colors Blue

Country of Origin Asia
