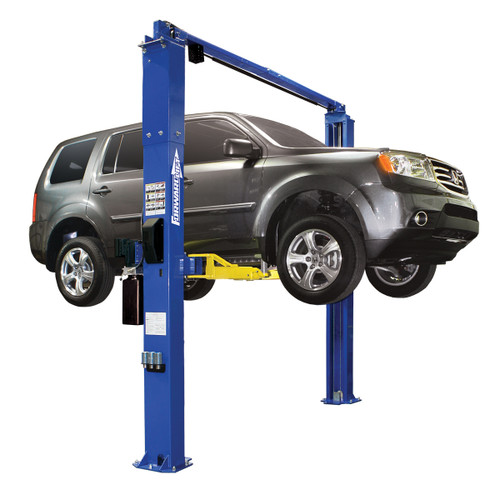

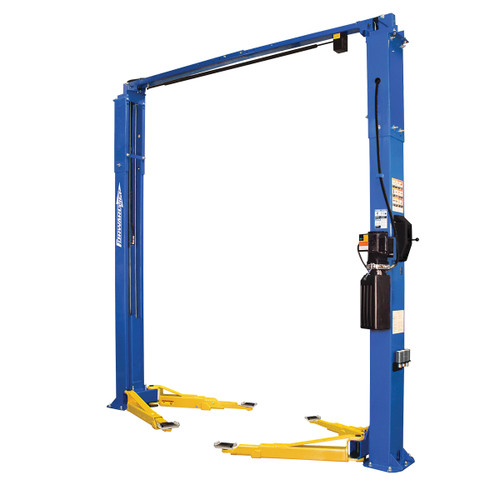

Forward I10N500 : 10,000 LB Versymmetric 2 Post Lift

Name: Forward I10N500 : 10,000 LB Versymmetric 2 Post Lift
Brand: Forward Lift
SKU: I10N500
Price: 5347 USD
Availability: InStock

Forward Lift

$5,347.00

Write a Review

SKU:: I10N500
Capacity:: 10000
Configuration:: Versymmetric
Configuration:: Symmetric
Configuration:: Asymmetric
Design:: Two-Post
Overall Height:: 143''
Overall Width:: 131''
Inside Columns:: 109''
Country of Origin:: Asia

Product Description

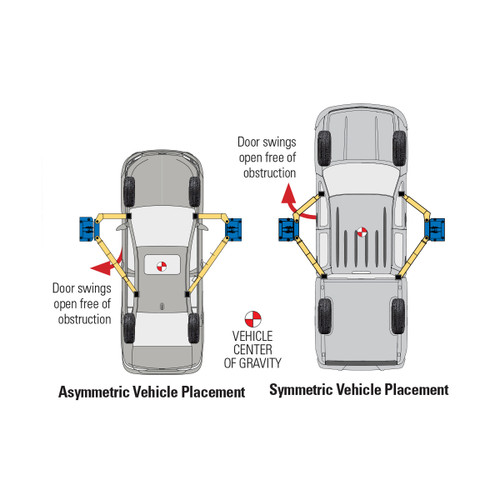

Frame engaging rubber padded truck adapters with multiple extensions to raise most vehicles on the road today. Includes four (each) adapter extensions at 3.5″ and 5″. Spot-Rite™ 3-Stage Front Arms to accommodate vehicles both symmetrically and asymmetrically. This feature allows the technician to position the vehicle doors in front of or behind the column to prevent door damage.

Additional Features:

10,000 lbs. capacity for raising most passenger cars, trucks and vans.
The I10 has been third party tested by ETL and approved by ALI.

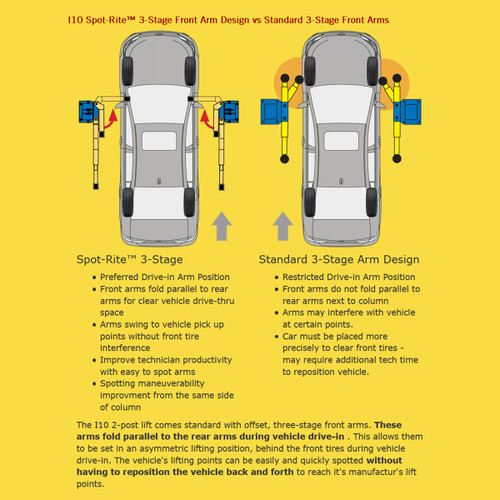

3-stage front arm design enables you to position doors in front of the column or behind to avoid door damage.
Includes adjustable frame contact adapters.
Adapter storage bracket kit.
Hydraulic cylinders in each column:
- Top-mounted | Direct pull lifting technology | Cylinder rod concealed inside the carriage

Specifications
Specifications

Specifications

Specifications	I10N400MBL
Capacity	10,000lbs
Max. Rise w/5″ extension	76-1/4″
Overall Height	143″ (3632mm)
Overall Width	131″ or optional 137″ (3327mm / 4380mm)
Drive through clearance	99″ or optional 105″ (2515mm / 2667mm)
Overhead switch height	137-5/8″ (3496mm)
Front reach (Min/Max)	23″ / 44-1/2″ (584mm / 1130mm)
Rear reach (Min/Max)	36″ / 58″ (914mm / 1473mm)
Min/Max Adapter Height	3-3/4″ (95mm) no adapter extension 8-3/4″ (222mm) w/5″ adapter extension
Width Inside Column	109″ or optional 115″
Ceiling height required	12′
Voltage/Amps	208-230V, 17 amps
Motor/Phase	1PH / 2HP / 60Hz
Ceiling height required	144″ (3658mm)
*Lifts available in blue and red Specifications subject to change without notice or liability

Specifications

Capacity 10000

Configuration Versymmetric

Configuration Symmetric

Configuration Asymmetric

Design Two-Post

Overall Height 143''

Overall Width 131''

Inside Columns 109''

Country of Origin Asia
