Forward F12N300 : 12,000 LB Symmetric 2-Post Lift - 166" Height

Name: Forward F12N300 : 12,000 LB Symmetric 2-Post Lift - 166" Height
Brand: Forward Lift
SKU: F12N300
Price: 8114 USD
Availability: InStock

Forward Lift

$8,114.00

Write a Review

SKU:: F12N300
Capacity:: 12000
Configuration:: Symmetric
Design:: Two-Post
Overall Height:: 166''
Overall Width:: 146''
Inside Columns:: 121''
Colors:: Red
Colors:: Blue
Country of Origin:: Asia

Product Description

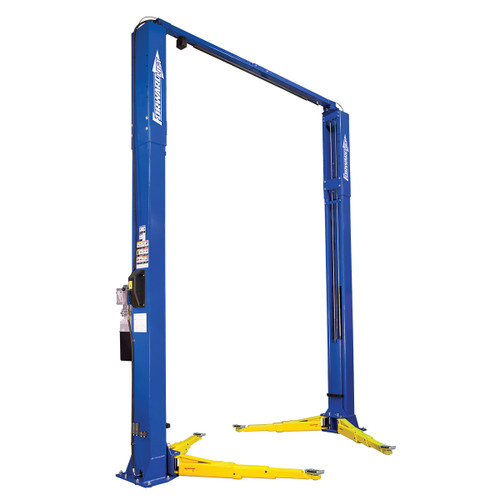

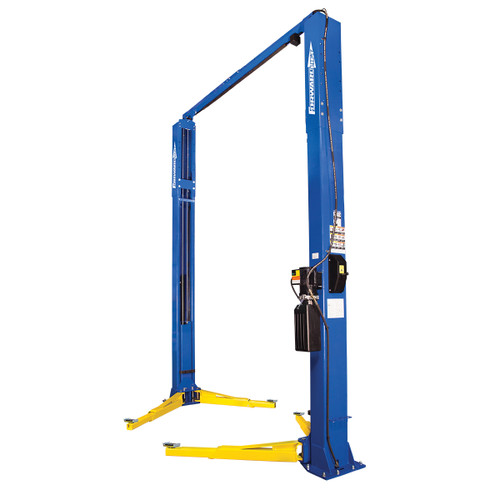

Forward's F12 two-post lift is gold certified with a 12,000 pound capacity for raising most passenger cars, trucks, and vans. With two heavy-duty push hydraulic cylinders designed to increase lift performance and minimize down-time. Cylinders are located in each column concealed within the carriage itself. Durable powder coat finish provides exceptional protection from the wears a shop will see over the years. Forward's spring operated arm restraints are just one feature that keep these heavy duty lift arms constantly performing at their peak performance.

Features:

166" Overall Height
Hydraulic cylinders in each column
Full Stroke
Cylinder rod concealed inside carriage
72-1/2" Rise | 77-1/2" Rise (With 5" adapter extensions)
2 Stage Arm Design
Overhead cable equalization
Single Point lock release
Large rubber-padded swivel adapter with extra height extensions (3.5" and 5") are standard
Spring operated arm restraints, disengage at floor level
2-stage front and rear arms
Durable powder coat finish

Specifications
Specifications

Specifications

Specifications	F12
Capacity	12,000 lbs.
Maximum Rise	77-1/2″ With 5″ adapter extension
Adjustable Overall Height Options	I12N300 13’ 10″ Standard I12N301 14’ 10” Max. Height I12N302 12’ 10” I12N303 11’ 11”
Overall Width	11’ 8″ or optional 12’ 2″
Drive Through Clearance	102-3/4″ or optional 108-3/4″
Overhead Switch Height Options	I12N300 160 1/8″ Standard I12N301 172 1/8″ Extended I12N302 148 1/8″ I12N303 137 1/8″
Front Arm Reach (Min./Max.)	27 3/4” / 59”
Rear Arm Reach (Min./Max.)	27 3/4” / 59”
Min./Max. Adapter Height	4-3/4″ w/ no adapter extension 9-3/4″ w/ 5″ adapter extension
Width Inside Columns	114 7/8” Standard 120 7/8″ Optional
Voltage/Amps	208-230v, 17 amps
Motor/Phase**	2HP / 1 PH
Ceiling Height Required	168″ (4267mm)
Specifications subject to change without notice or liability. *Lifts available in blue (BL) and red (RD)

Specifications

Capacity 12000

Configuration Symmetric

Design Two-Post

Overall Height 166''

Overall Width 146''

Inside Columns 121''

Colors Red

Colors Blue

Country of Origin Asia
