Emax ERIK020003 : 20 HP 76 CFM 3P Fixed Speed Industrial Rotary Screw mounted on a 120 Gal horizontal Tank swingarm 115 CFM Air Dryer

Write a Review
$11,599.00
SKU: ERIK020003
Voltage: 208V
Voltage: 230V
Voltage: 460V
HP: 20 HP
Phase: 3 Phase
CFM: 71-80
Speed: 1750 RPM
Mount Type: Tank Mounted
Tank Size: 120 Gal
Tank Orientatiion: Horizontal
Adding to cart… The item has been added

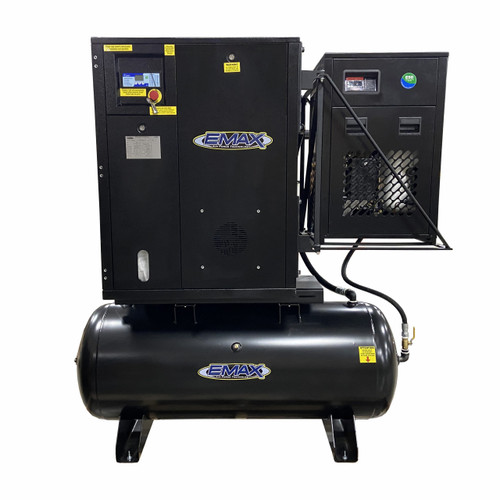

EMAX ERIK020003 20HP 3PH 76CFM Fixed Speed Industrial Rotary Screw Compressor mounted on a 120 Gal horizontal Tank swingarm 115CFM Air Dryer

EMAX Compressors 20HP new generation Industrial Rotary Screw series have been built to exacting standards, to provide years of reliable service with a 60,000-pump life expectancy. Our Industrial series rotary line offers superior performance, a slick design and quite operation. The sound proof cabinet helps reduce operational noise to a minimum. Our Industrial Rotary Screw Air Compressors are built with premium standard features, offering the Logik 9 smart controller giving you the visual ability to set pressures, alarms and schedules. The controller has multi-unit control giving you the ability to run multiple Rotary’s with a master/slave relationship. These units are equipped with V-belt drive, 1750RPM premium motor, MANN Filters for superior filtration, 8000HR oil and all back by the best warranty program! This unit is mounted to a receiving tank with a patented swingarm mounted air dryer for small foot print and easy maintenance.

CFM @ 100 PSI76.99
Motor RPM1750
Motor PhaseThree
Voltage available208/230/460
Tank Size120 Gallon
Tank orientationHorizontal
Tank Outlet Size1"
Tank DrainManual
CertificationsUL, ASME
Warranty1 Year Standard, 5 Year Extended
Max PSI145
Product SourceItaly
Drive TypeBelt Driven
