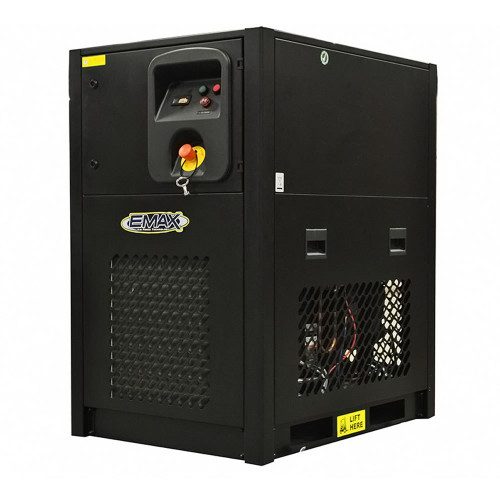

EMAX EDRCF4600850 : Airbase By Emax 850 CFM 460V Ref Air Dryer

Write a Review
$22,499.00
SKU: EDRCF4600850
Voltage: 460V
CFM: 850
Adding to cart… The item has been added
Description

Our EMAX air dryer is the only energy efficient dryer systems with aluminum refrigerated air inner cooler. The air is filtered of all solid particles 0.01 micron and larger.  Clean, dry compressed air leaving the dryer minimizes maintenance and repair and also reduces internal dryer contamination. We designed them with Non-corrosive inner and after cooler. Our dryers feature stainless steel heat exchanger for maximum dryer life and less maintenance.  Emax Air dryers are UL-CSA approved scroll compressor & electric system for high efficiency and durability. They feature adjustable hot bypass for complete dryer function in low and high CFM flow preventing dryer freeze up.

Refrigerated Air Inlet Inner Cooler

  • Provides trouble free operation for high temp cooling

Environmentally Safe

  • Uses 134A refrigerant to prevent damage to the ozone layer

Compact and Efficient

  • 850 CFM at 37°F PDP

Easy Wiring

  • Uses 460V 3-Phase power

Added Features

  • Refrigerant Pressure Gauge
  • Auto Drain System
  • Outlet Air Baffle Heater
Specifications
Dryer CFM 850
 Dryer Dims 47 x 32 x 74
 Dryer Weight 937
 Refrigerant Type 134a
 Dryer Drain Type Built in automatic
 Filtration Built in Coalescing Filter
 Dew point 37-50
 Dryer Pipe size 3" NPT
 Max Rated Inlet Temp 150
 Max Ambient Temp 120
 Full load amps 11.22
 Amp draw 20
 Hertz 60
 Phase 3 Phase
 Dryer Voltage 460
 Dryer CFM 850
 Refrigerant amount Ounces 352 OZ
 Noise level 70 DBA
 Normal working pressure PSI 100
 Max Pressure 230
 Auto Drain Timer cycle Every 5 Min / 5 Second drain
 Superheat of Thermostatic Expansion Valve 41 F - 50 F
 Evaporating Pressure 29.7 PSI
 Fan Pressure Switch 130 - 174 PSI
 Security High Pressure Switch 162.5 PSI
 Security Low Pressure Switch 23.2 PSI
 Refrigerant Temp. Switch 113 F
 Water Flow Valve 159.5 PSI
 Freight Class 70
 Shipping DIMS 47 X 32 X 74
 Shipping Weights 1012
 COO Germany
