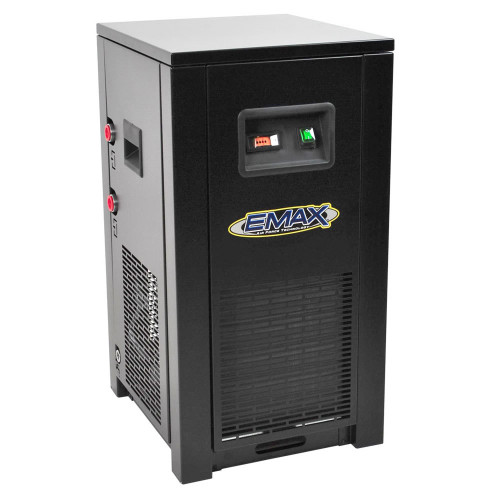

EMAX EDRCF1150058 : Airbase By Emax 58 CFM 115V Ref Air Dryer

Name: EMAX EDRCF1150058 : Airbase By Emax 58 CFM 115V Ref Air Dryer
Brand: Emax
SKU: EDRCF1150058
Price: 2599 USD
Availability: InStock

Emax

$2,599.00

Write a Review

SKU:: EDRCF1150058
CFM:: 58
Voltage:: 115V

Product Description

Our EMAX air dryer is the only energy efficient dryer systems with aluminum refrigerated air inner cooler. The air is filtered of all solid particles 0.01 micron and larger. Clean, dry compressed air leaving the dryer minimizes maintenance and repair and also reduces internal dryer contamination. We designed them with Non-corrosive inner and after cooler. Our dryers feature stainless steel heat exchanger for maximum dryer life and less maintenance. Emax Air dryers are UL-CSA approved scroll compressor & electric system for high efficiency and durability. They feature adjustable hot bypass for complete dryer function in low and high CFM flow preventing dryer freeze up.

Features:

Less corrosion of pipes and tools means less downtime
Avoid splotches & stains on your projects with proper filtration
Designed for maximum performance and efficiency
Maximum heat transfer, maximum dryer life & less maintenance
Provides trouble free operation for high temp cooling
Uses 134A refrigerant to prevent damage to the ozone layer
Great for a 5-7.5 HP systems
58 CFM
Uses 120V single-phase power, no special wiring needed
Auto Drain System
Refrigerant Pressure Gauge
Outlet Air Baffle Heater

Specifications
Specifications

Specifications

CFM	58
Dimensions LxWxH	16" x 18" x 24"
Product Weight	90
Voltage 60HZ	115
Amp Draw	7.2
Dew Point (degrees F)	37-50
Pipe Size:Inlet & Outlet (inch.)	3/4"
Max Ambient Temp.(degrees F)	122
Refrigerant Type	R-134A
Max Rated Inlet Temp (degrees F)	140
Dryer Drain	Built in automatic
Dryer Filtration	Built in coalscing Filter

Specifications

CFM 58

Voltage 115V
