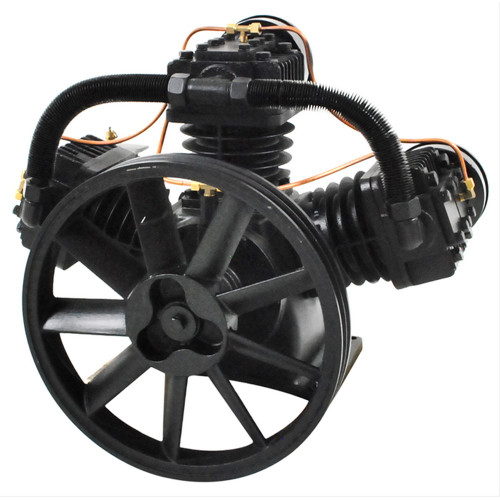

EMAX APP3Y0518S : 5 HP 18 CFM Single Stage Reciprocating Air Compressor

This Emax 3 Cylinder Heavy air compressor  pump with 18 CFM Displacement and a Free Air (usable air) of 14 CFM @ 90 PSI can’t be beat.  This pump has a maximum PSI of 135.  It takes 19.5 amps (running amps) to pull this pump.  This pump can be slowed down by putting a smaller pulley on your motor and it can be ran with a 3 HP motor pulling 15 amps on 220V (running amps). Minimum RPM is 600 and a maximum RPM of 1080.

Features:

• Solid cast iron 3-cylinder piston series pump, oil lubricated design to extend pump life, (based on B-10 bearing life rating)
• Cool-Tek – the coolest running compressors in the industry, air stream technology provides 35% lower operating temperature, reduces moisture build up and extends pump life
• valves, deliver maximum air flow and reliability with low replacement costs, easily accessible design provides easy maintenance and durability
• Industrial grade ball bearing for maximum performance and extended pump life
• Built-in head unloaders designed for continuous run applications
• Bolt pattern: 8-1/4 in. x 5-1/4 in.
• Pump flywheel included on pump
• Solid cast-iron cylinders, crankcase, flywheel, crankshaft, and valve plates
• Steel Automotive-Type Filters – not plastic
• Large site glass for viewing your oil level
• dimensions of this pump are: 19” W x 15” D x 16” H and Flywheel is 10.5
• weight: 80 lbs
• includes oil -holds 1.5 quarts of oil
