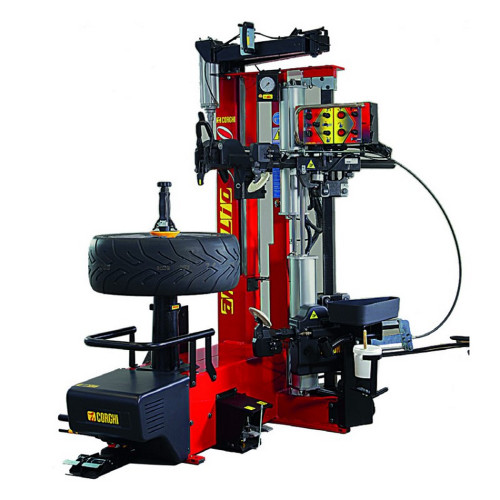

Corghi Artiglio 500 : Leverless Tire Changer w/ Center Clamp
Write a Review
Write a Review
Corghi
Corghi Artiglio 500 : Leverless Tire Changer w/ Center Clamp
$17,268.18
SKU:
0-11108234/00
Corghi ARTIGLIO 500 Automatic tire changer with 2nd generation Lever-less technology
Corghi presents Artiglio 500, the new automatic tire changer with 2nd generation “Leva la leva” (Without lever) technology for vehicle, SUV and commercial vehicles wheels up to 32”. A natural evolution of Artiglio 50, this new tire changer maintains its best qualities and also presents many technical innovations: dynamic bead breaking device with a dual bead breaker disc, newly designed head group, more performing wheel support plate clamping, reinforced structure, great attention to ergonomics and control availability. All of this means a faster operating speed without risks to the operator and the rims, even during the most critical phases, great simplicity of use and universality, for equipment whose features can be used 100%.
DYNAMIC BEAD BREAKING DEVICE with dual specular bead breaker disc. The radial positioning of the discs is made easier by an automatism that can prevent any manual positioning by the operator. CONTROLLED PENETRATION (Patent pending) Precision, rapidity and repeatability are guaranteed by the patented bead breaking system and by the perfectly synchronized and symmetrical motions of the two discs.
Corghi presents Artiglio 500, the new automatic tire changer with 2nd generation “Leva la leva” (Without lever) technology for vehicle, SUV and commercial vehicles wheels up to 32”. A natural evolution of Artiglio 50, this new tire changer maintains its best qualities and also presents many technical innovations: dynamic bead breaking device with a dual bead breaker disc, newly designed head group, more performing wheel support plate clamping, reinforced structure, great attention to ergonomics and control availability. All of this means a faster operating speed without risks to the operator and the rims, even during the most critical phases, great simplicity of use and universality, for equipment whose features can be used 100%.
DYNAMIC BEAD BREAKING DEVICE with dual specular bead breaker disc. The radial positioning of the discs is made easier by an automatism that can prevent any manual positioning by the operator. CONTROLLED PENETRATION (Patent pending) Precision, rapidity and repeatability are guaranteed by the patented bead breaking system and by the perfectly synchronized and symmetrical motions of the two discs.
- Center-Clamp Mounting
- 2-Speed Drive System
- Wheel Dimension
- rim diameter from 12 in to 32 in
- maximum tire diameter 47.2 in (1200 mm)
- maximum tire width 15 in
- rim diameter from 12 in to 32 in
- Integrated Wheel Lift
- Tire types processed conventional, Low Profile and Run Flat
- 110 Volt Electric Servo Motor
- Includes installation and training
• Wheel Diameter : 12”- 32” (305 ÷ 660 mm)
• Maximum Tire Diameter : 47.2” (1100 mm) (*)
• Maximum Tire Width :15” (360 mm)
• Tire Types : Conventional, low profile and Run Flat
• Clamping : Manual
• Drive System : 2 speed
• Rotation Torque : 811.8 ft/lb (1100 Nm)
• Rotation Speed : 7 - 18 rpm
• Maximum Bead Breaking Range : 18” (457 mm)
• Bead Breaking Force : 1710 lbs. (7600 N)
• Wheel Loading : Pneumatic
• Maximum Wheel Weight : 187.4 lb (85 Kg)
• Power Requirements : 110 Volt - 1,31 hp 50 Hz / 110V
• Packaging (L x D x H) : 48.8” x 59” x 72.4” (1240 x 1500 x 1840 mm)
• Shipping Weight : 883 Lbs.
• Maximum Tire Diameter : 47.2” (1100 mm) (*)
• Maximum Tire Width :15” (360 mm)
• Tire Types : Conventional, low profile and Run Flat
• Clamping : Manual
• Drive System : 2 speed
• Rotation Torque : 811.8 ft/lb (1100 Nm)
• Rotation Speed : 7 - 18 rpm
• Maximum Bead Breaking Range : 18” (457 mm)
• Bead Breaking Force : 1710 lbs. (7600 N)
• Wheel Loading : Pneumatic
• Maximum Wheel Weight : 187.4 lb (85 Kg)
• Power Requirements : 110 Volt - 1,31 hp 50 Hz / 110V
• Packaging (L x D x H) : 48.8” x 59” x 72.4” (1240 x 1500 x 1840 mm)
• Shipping Weight : 883 Lbs.
