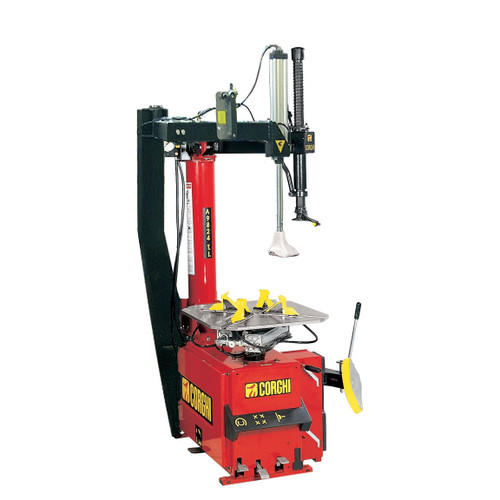

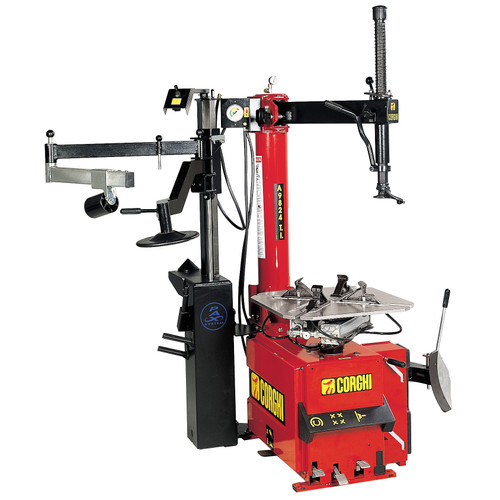

Superior quality teamed with a sleek design and other unique features allow this machine to achieve speeds up to 50% faster than any other tire changer on the market in its price range. That's why Corghi was awarded ISO 9001 Quality Certification, industry's most coveted award. Run-flat certified by all major tire manufacturers.
Features:
- 2 speed turn table.
- Built-in table inflator with jets in the jaws.
- Unique mount/demount head does not touch the rim during operation.
- Locking handle locks head away from the rim.
- Powerful action bead-breaker blade follows bead to inside rim contour.
- Heavy-duty turntable rotates in either direction.
- Rebuildable stainless steel cylinders.
- Heavy-duty stainless steel turntable.
- Safe, fast, profitable and affordable.
- Bead-pressing lever.
- Upper arm assembly swings out-of-way.
- Shipping weight 608 lbs.
- Also available with 2-speed electric motor.
Specifications
• Ext. Rim Size 10”-24”
• Optional w/Adapter 8”-28”
• Int. Rim Size 13”-26”
• Voltage 110V 1 Ph or Air
• Rim Width 3.5”-14”
• Max. Tire Diameter 47”
• Air Pressure 150 psi
• Bead Breaker Power @ Shoe 3500 lbs
• Torque 737 ft/lbs
