Challenger DX77-Flush : Flush Mount Scissor Lift

Name: Challenger DX77-Flush : Flush Mount Scissor Lift
Brand: Challenger Lifts
SKU: DX77-FLUSH
Price: 15101.15 USD
Availability: InStock

Challenger Lifts

$15,101.15

Write a Review

SKU:: DX77-FLUSH
Capacity:: 7700
Design:: Scissor
Height:: Full Rise
Type:: General Svc
Application:: Dealerships
Application:: Express Bays

Product Description

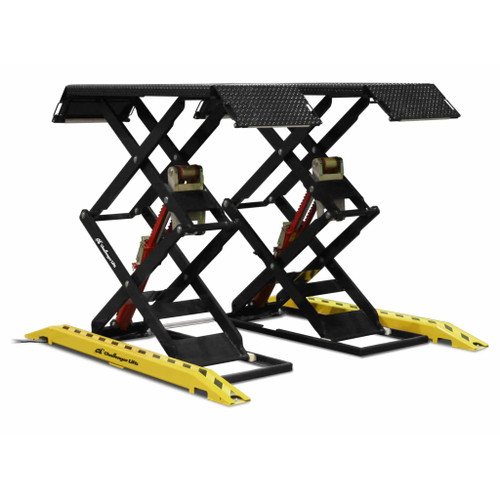

The Challenger DX77 Flush mounted Mounted 7,700 lb. Capacity Double Scissor Lift was engineered with efficiency and productivity in mind. Our DX77 can easily lift all makes and models (within rated capacity) with a synchronized hydraulic system. The DX77 also offers free access all around the lifted vehicle and between platforms, with a cross-member free design providing an uncluttered and hazard-free work area. Choose to mount the DX77 either above ground or flush.

Features:

7,700 lb. lifting capacity
74.5” rise height (70″ if flush mounted)
Reinforced diamond-plate front and rear access ramps are designed to easily flip up and lock to extend the platform load length, which will accommodate longer wheelbase vehicles
Double scissor lifting for taller rise allows more overall working clearance
Single point air actuated lock release allows ergonomic working height for technicians to increase productivity and minimize fatigue
Power unit console includes three simple push button controls
3” rubber spotting blocks (set of 4) and 1.5” rubber spotting blocks (set of 4) included
Extended ramp kit available for low profile vehicles
Powder coat finish provides long-lasting durability
Can be mounted above ground or flush
ALI/ETL certified.

Specifications
Specifications

Specifications

Model Number	DX77	DX77R
Lifting Capacity	7,700 lbs.
Installation	Standard	Flush Mount
Rise Height	74.5”	70”
Overall Length	83.25”
Overall Width	82”	69.5”
Platform Length	59”
Platform Width	24.5”
Width Between Platforms	21 - 27”
Ramp Length	11.75”
Lowered Height	4.5”	-
Motor	2HP, Single Phase, 60Hz
Voltage	208/220v
Air Supply Required	90 - 120 psi
Speed of Rise	43 s
Max Load per Platform	3,850 lbs.
Colors Available	Black

Specifications

Capacity 7700

Design Scissor

Height Full Rise

Type General Svc

Application Dealerships

Application Express Bays
