Challenger CLHM-190 : Mobile Column Lift (Single)

Name: Challenger CLHM-190 : Mobile Column Lift (Single)
Brand: Challenger Lifts
SKU: CLHM-190
Price: 14458.64 USD
Availability: InStock

Challenger Lifts

$14,458.64

Write a Review

SKU:: CLHM-190

Product Description

Challenger’s CLHM Series heavy-duty mobile lifting system provides the perfect balance of strength and maneuverability, making it ideal for use on any solid surface, whether indoors or outdoors. With the ability to lift vehicles weighing up to 152,000 pounds (with eight units connected), including oversized 2-, 3-, or 4-axle vehicles, these mobile lifts offer unmatched flexibility.

Additionally, with no cables to connect each column, they effortlessly lift vehicles of any axle length or wheelbase. These heavy-duty mobile lifts are available in 19,000 lbs. capacity and are versatile for various vehicle lifting needs.

19,000 lb. capacity columns
Hydraulic operated units provide 38,000 (set of 2) or 152,000 lbs. (set of 8) lifting capacity

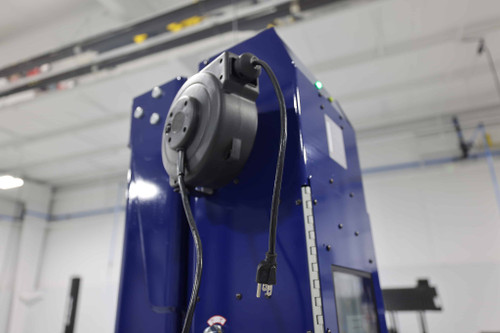

110-volt built-in multi-stage charging system
Wireless system for clutter-free work area without cables to connect, navigate, roll-over or replace

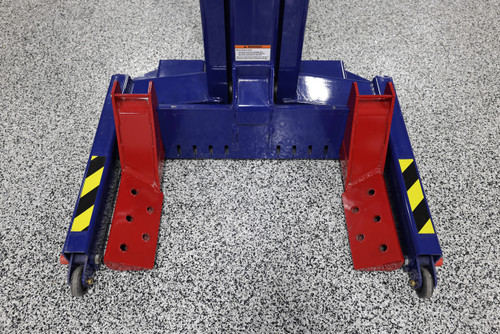

Adjustable wheel carriage adapts to most tire sizes
12 radio frequencies with a wide channel range prevents radio noise from interrupting service
Linear position transducers maintain system synchronization and ensure maximum reliability

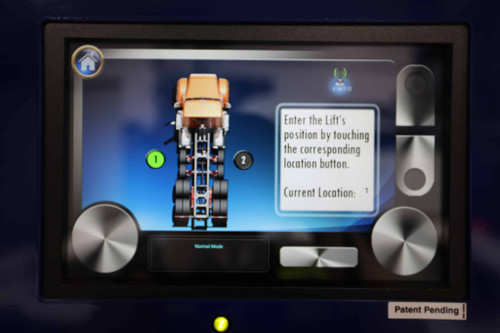

Integrated touch screen control console at each column allows operation from any unit

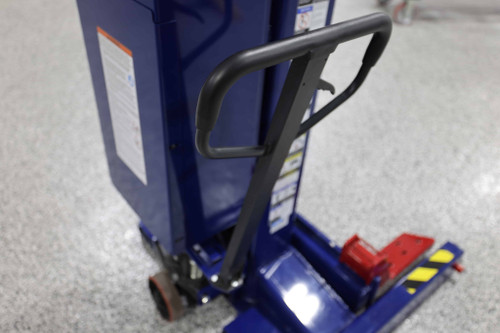

Precise balanced design, heavy-duty tow handle and spring-loaded wheels for easy mobility
Operates with 12-volt deep cycle batteries eliminating the need for power source hookups and providing 24-volt operation
Integrated weight gauges help prevent column overloading and verify lock engagement
Wide range of accessories available to further customize your columns to lift specialty heavy-duty trucks, transit and municipality vehicles, forklifts, cab removal of standard pickup trucks and more

Specifications

Specifications

Model Number	CLHM-140	CLHM-190	CLHM-190W
Lifting Capacity Per Column	14,000 lbs.	19,000 lbs.	19,000 lbs.
Height of Lift Unit	88.5"	88.5"	88.5"
Height of Lift Unit at Full Rise	157.125"	157.125"	157.125"
Width of Lift Unit	44.25"	44.25"	49"
Length of Lift Unit	53.625"	53.625"	53.625"
Maximum Lift Height (4 or more units)	69"	69"	69"
Maximum Lift Height (2 units - Normal Mode)	32"	32"	32"
Min-Max Wheel Diameter	5" - 24.5"	5" - 24.5"	4" - Max det. by tire size
Max. Hydraulic System Operating Pressure	2,180 psi	2,600 psi	2,600 psi
Lift Speed (Max Load)	60" per min.	60" per min.	60" per min.
Weight of Lift Unit	1,485 lbs	1,510 lbs	1,575 lbs
Footprint of Lift Unit	560 sq. in.	560 sq. in.	600 sq. in.
Ground Pressure for each Lift (Max. Load)	27.7 psi	36.6 psi	34.3 psi
Turning Radius of Lift Unit	47"	47"	47"
Operating Peak Power	4HP	4HP	4HP
Operating Voltage	24 VDC nominal	25 VDC nominal	26 VDC nominal
Charger Voltage Required	120 VAC @ 60 Hz	120 VAC @ 60 Hz	120 VAC @ 60 Hz
Charger Amps Required	1.3 Amps	1.3 Amps	1.3 Amps
ALI/ETL Certified	Yes	Yes	Yes
Colors Available	Blue	Blue	Blue
