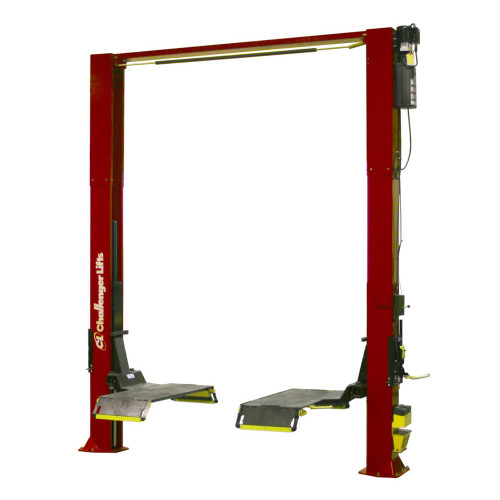

Challenger CL10A-XP9 : 9,000 LB Symmetric 2-Post Lift - 143" Height
$12,319.71
SKU:
CL10A-XP9
Capacity:
9000
Configuration:
Symmetric
Overall Height:
143''
Overall Width:
142''
Inside Columns:
114''
Colors:
Red
Colors:
Blue
Colors:
Black
Design:
Two-Post
Country of Origin:
USA
Challenger's 9,000 lb. capacity CL10XP9 2-post lift offers a drive-on pad for the quickest vehicle spotting designed for express bays. Accurate first-try spotting will boost your productivity as well as reduce frustration in your shop. Quick Cycle models improve lifting speed to just 27 seconds rise and 17 seconds lower. Also, adjustable height and width options are available, making the CL10-XP9 the best choice for any service professional. Expand your service potential with our most versatile, easy-to-operate lift.
Features:
- 9,000 Lb. Lifting Capacity
- Drive on Express Pad Lifting configuration
- 70 inch Rise Height
- 140 to 143 inch Overall Height (153 inches is cylinder extended)
- 2 and 3 foot height extensions available
- 138.5 inches overall width
- 12 ft. ceiling height required
- Quick Cycle models also available
| Model Number | CL10-XP9 | CL10-XP9-DPC | CL10-XP9-QC | CL10-XP9-DPC-QC |
|---|---|---|---|---|
| Lifting Capacity | 9,000 lbs. | 9,000 lbs. | 9,000 lbs. | 9,000 lbs. |
| Lifting Configuration | Drive-on express pad | Drive-on express pad | Drive-on express pad | Drive-on express pad |
| Rise Height | 70” | 70” | 70” | 70” |
| Overall Height | 140” | 140” | 140” | 140” |
| Overall Height (Cylinder Extended) | 143” | 143” | 143” | 143” |
| 2’ Height Extension Available | Yes | Yes | Yes | Yes |
| 3’ Height Extension Available | Yes | Yes | Yes | Yes |
| Overall Width | 138.5” | 138.5” | 138.5” | 138.5” |
| Drive-Thru Clearance | 90” | 90” | 90” | 90” |
| Floor to Overhead Switch | 134.5” | 134.5” | 134.5” | 134.5” |
| Platform Height | 2.25“ | 2.25“ | 2.25“ | 2.25“ |
| Platform Width | 24” | 24” | 24” | 24” |
| Platform Length | 58” / 66.5” / 75” | 58” / 66.5” / 75” | 58” / 66.5” / 75” | 58” / 66.5” / 75” |
| Width Between Platforms | 31.5“ | 31.5“ | 31.5“ | 31.5“ |
| Inside of Columns | 110” | 110” | 110” | 110” |
| Motor / Voltage | 2HP, 208v-230v, 60Hz, 1Ph | 2HP, 208v-230v, 60Hz, 1Ph | 3HP, 208v-230v, 60Hz, 1Ph | 3HP, 208v-230v, 60Hz, 1Ph |
| Speed of Rise | 38 s | 38 s | 27 s | 27 s |
| Ceiling Height Required | 12’ | 12’ | 12’ | 12’ |
| ALI/ETL Certified | Yes | Yes | Yes | Yes |
| Featuring Quick Cycle | - | - | Yes | Yes |
| Featuring Dual Pendant Controls | - | Yes | - | Yes |
| Colors Available | Red, Blue, Black | Red, Blue, Black | Red, Blue, Black | Red, Blue, Black |
