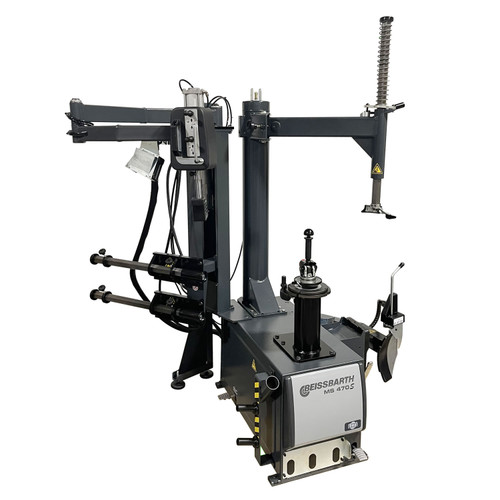

Beissbarth MS 470S-BP : Performance Swing Arm Tire Changer w/ NG230 Technoroller Bead Press System

Write a Review
$8,363.00
SKU: 1694201479-BP
Adding to cart… The item has been added
Description
Beissbarth MS 470S high volume service tire changer, combines the familiarity of a traditional swing arm and the versatility of a modern center post. The MS 470S, is capable of safely and efficiently handling virtually any wheel combination for both passenger and light truck vehicles while minimizing damage due to standard rim-clamp designs.

Key Features:
  • Center post design
  • Clamping range 12" to 32"
  • Hand operated Ergo bead-breaker
  • 2 Speed rotation gives control over the mounting process
  • NG230: Tecnoroller Bead Press System
  • 2 year parts and labor warranty

Standard Accessories:
  • 1 Bead lever
  • 1 Lubricant brush
  • 1 Bead pressing device
  • 1 Bead breaker plastic protection
  • 5 Mount / demount head protectors
  • 1 Wing side protection for demount head
  • 1 70mm Cone
  • 2 Cone protector tool locking system
  • 2 Center locking protection
  • 2 pin protection locking system

Technical Specifications:
  • Power Supply:           110V, 1 Ph, 50/60Htz, 20 AMP
  • Air Supply Pressure:   116-145 PSI
  • Rim Diameter:           12-32"
  • Max Wheel Diameter: 47"
  • Max Rim Width:         15"
  • Turntable Speed:       2 Speed Motor
  • Rotation Speed:         7 and 15 RPM"
  • Bead Breaker Range:  Up To 15" - Ergo Control
  • Breaking force:          11,500 N t using the toolbar.
Specifications
  • Power Supply:           110V, 1 Ph, 50/60Htz, 20 AMP
  • Air Supply Pressure:   116-145 PSI
  • Rim Diameter:           12-32"
  • Max Wheel Diameter: 47"
  • Max Rim Width:         15"
  • Turntable Speed:       2 Speed Motor
  • Rotation Speed:         7 and 15 RPM"
  • Bead Breaker Range:  Up To 15" - Ergo Control
  • Breaking force:          11,500 N t using the toolbar.
