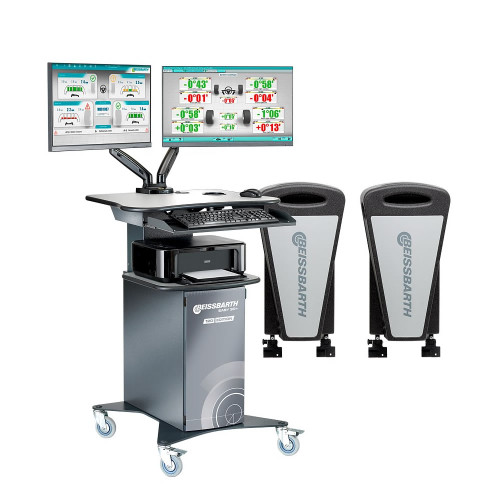

Beissbarth Easy CCD+ Excellence: CCD Aligner w/ Premium Console

Name: Beissbarth Easy CCD+ Excellence: CCD Aligner w/ Premium Console
Brand: Beissbarth
SKU: 1690310074
Price: 13455 USD
Availability: InStock

Beissbarth

$13,455.00

Write a Review

SKU:: 1690310074

Product Description

Wheel alignment using CCD measuring technology is the ideal entry-level solution by Beissbarth - economical, flexible, space-saving | with cabinet, HighPerformance PC, 27" monitor and printer | incl. turntables and wheel clamps

Perfectly integrated into ADAS calibration and head light testing:

•   The space in front of the lift can be used for ADAS calibration boards and head light tester
•   Permanent self-check and precise ADAS calibration jig orientation to the thrust vehicle's thrust angle
•   No need for extra cameras, cables, or clamps required for ADAS calibration
Best in class: +/- 2 minute accuracy:
•   360° measurement field for permanent self-check and adjustment of system to movement and vibrations
•   Rolling runout compensation eliminates time-consuming raising of vehicle and single-wheel compensation
•   No calibration to a specific lift allows a measurement on any wheel alignment bay
•   Wireless data transfer and integrated battery enable full mobility and allow the use of Windows tablets or Laptops
•   Intelligent and space-saving charging solution that can be mounted on any wall
•   Quality made in Germany
•   Also available as kit version; ideal for already existing alignment bays

Scope of delivery:
•   Sensor head with encoder and battery power
•   +Software with SmartTest for direct reception and ADAS calibration Option
•   Vehicle specs database
•   Cabinet with HighPerformance PC
•   27" monitor
•   Printer
•   Multi-fit wheel clamp 13" - 22" with standard and Softline claws
•   Mechanical Turntables without electronics
•   Brake pedal depressor and steering wheel holder
•   Emergency cable set

Specifications

Specifications

Operating temperature 5 - 40 °C
Storage temperature     -20 - 60 °C
Relative humidity, use   (40 °C) 10 - 90 %
Height cabinet   1520 mm
Width cabinet    880 mm
Depth cabinet    770 mm
Weight cabinet 80 kg
