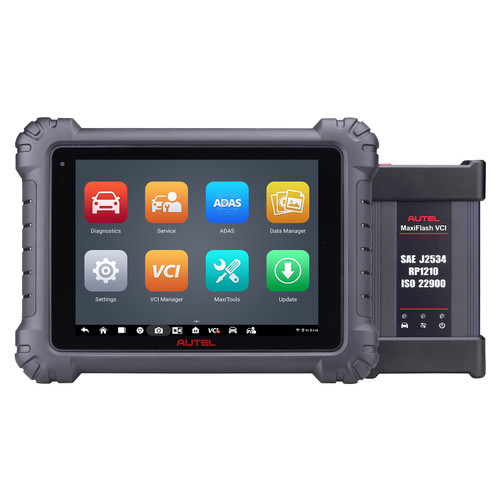

Autel MS909 : Diagnostic Tablet with MaxiFLASH VCI

Write a Review
$3,795.00
SKU: MS909
Type: Diagnostics Tablet
Application: Automotive
Category: Diagnostics Tablets
Adding to cart… The item has been added
Description

The MaxiSYS MS909 is a 9.7-inch touchscreen Android-based advanced diagnostic tablet powered by an Octa-core processor (2.3GHz Quad + 1.7GHz Quad), 128GB memory and features an advanced VCI supporting latest DoIP, D-PDU and Mega CAN vehicle communication protocols. The MS909 features topology module mapping capability for supported vehicles and its Intelligent Diagnostics feature that guides the technician from code to repair to test with detailed repair information and illustrations. The MS909 features a rechargeable Lithium battery proving 8 hours of continues use, and front and rear cameras.



Features:

  • 9.7’’ Touchscreen (1536 x 2048) / Android 7.0
  • 2.3GHz+1.7GHz Octa-core Processor / 128GB Memory
  • New VCI Protocols: D-PDU, DoIP/CAN FD, Mega CAN
  • Topology Module Mapping: Color Coded All System Status Screen (on supported vehicles)
  • Relevant Cases: DTC Troubleshooting / Repair Tips
  • Repair Assist: Guided Procedures with DTC Analysis & Fault Code Solutions
  • Code-Related Technical Service Bulletins (on select vehicles) / License Plate Reader
  • ScanVIN: Barcode or Text Recognition with Camera
  • Secure Gateway Access: Authorized FCA SGM Access with AutoAuth Account
  • Includes Cables, MaxiFlash VCI, Carrying Case, 1YR Warranty & Software Subscription
  • Enhanced Diagnostic Reports: PreSCAN & PostSCAN
  • 15000mAh - 8hrs Continuous Use / 16MP Rear Camera & 5MP Front Camera
Specifications
Operating SystemAndroid 7.0
ProcessorSamsung Exynos 8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
Memory4GB RAM & 128GB On-board Memory
Display9.7-inch TFT-LCD with 1536 x 2048 resolution & capacitive touch screen
Connectivity
  • WiFix2 (802.11 a/b/g/n/ac 2×2 MIMO)
  • BT v.2.1 + EDR
  • GPS
  • USB 2.0 (TWO USB HOST Type A, ONE USB mini device)
  • HDMI 2.0
  • SD Card (Support up to 256GB)
Camera
  • Rear: 16 Megapixel, Autofocus with Flashlight
  • Front: 5.0 Megapixel
SensorsGravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output
  • Microphone
  • Dual Speakers
  • 3-Band 3.5 mm stereo/standard headset jac
Power and Battery
  • 15000mAH 3.8V lithium-polymer battery
  • Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage12V/3A Adapter
Operating Temperature0 to 50°C (32 to 122°F)
Storage Temperature-20 to 60°C (-4 to 140°F)
Dimensions(W x H x D)304.4 mm (11.98″) x 227.8 mm (8.97″) x 42.5 mm (1.67″)
Weight1.66kg (3.66 lb.)
ProtocolsDoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)
