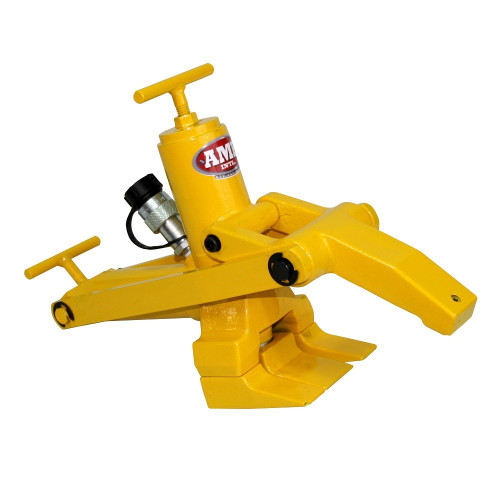

AME 12010 : Combi Tire Bead Breaker Kit

AME 12010: Combi Tire Bead Breaker Kit

#11010

• Most popular tool for breaking beads on all agricultural wheels
• Used on construction wheels up to 25
• Works on single, 2 and 3 piece wheels
• Tool clamps hydraulically to the wheel and then breaks bead with 11 tons of force
• 3.75 (9.5 cm) stroke length
• Used with 10,000psi (700 bar) air/hydraulic pump
• Weight: 34 lbs (15.5 kg)

#15920

• Builds 10,000 PSI of pressure to fit the majority of tools on the market
• Operates on 80-120 PSI of inlet air pressure. (Standard on most compressors and shop air)
• Durable Metal Air Motor Assemblies
• Designed specific to conditions normally associated with OTR sites
• Oil Capacity: 2.5 Quarts ( 2.36 Liters)
• Reservoir Type: Polyethylene
• Weight: 14 lbs (6.4 kg)

#16040

• 10,000 psi (700 bar) working pressure hydraulic hose
• Equipped with 3/8 NPT ends, including one swivel end
• Meets IJ100 Jack Hose specification
• Each hose is tagged with laminated Do Not Remove' tags for OSHA compliance
• Hose Lengths: 8'
• Hi Flow Male
• Other sizes (including custom sizing) available
