Quest MT6650HD Touch : Advanced Truck Wheel Balancer
$13,995.00
SKU:
MT6650HD
Premium truck balancer provides all the power features you need for commercial and light duty vehicles. Advanced diagnostic features using SONAR sensors help identify and resolve wheel / tire geometric uniformity issues.
Includes:
- Fast Matching to Ensure Round Assemblies

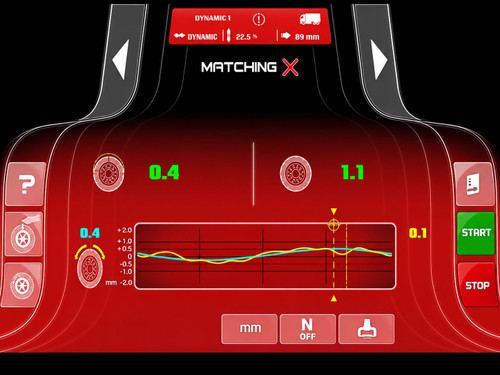

- Touch Screen Interface for All Levels of Technicians
- One Touch Multifunction Button
- Direct Wheel Positioning with Electromagnetic Brake
- Laser Line System for Direct Weight Placement
- Automatic Width Dimension using Sonar
- Integrated LED Illumination
- Integrated Wheel Lifting System
- Easy Weight
- Basic Heavy Duty Cone Kit
- Installation and Comprehensive Training
| Power supply | 200 ÷ 230V / 1Ph / 50 ÷ 60Hz - 100 ÷ 115V / 1Ph / 50 ÷ 60Hz |
| Total power absorption | 400 W |
| Balancing speed | 100 rpm car / 80 rpm truck |
| Shaft diameter | 40 mm (1,57”) |
| Supply pressure | 8 ÷ 12 bar (120 ÷ 165 psi) |
| Average measurement time | 8 ÷ 16 s |
| Balancing precision | 1 g car / 10 g truck |
| Settable rim width | 1,5” ÷ 20” / 40 ÷ 510 mm |
| Settable rim diameter | 10” ÷ 30” / 265 ÷ 765 mm |
| Maximum wheel weight (8 bar) | 300 kg (660 lb) |
| Maximum wheel diameter | 52” / 1321 mm |
| Machine weight | 260 kg (573 lb) |
