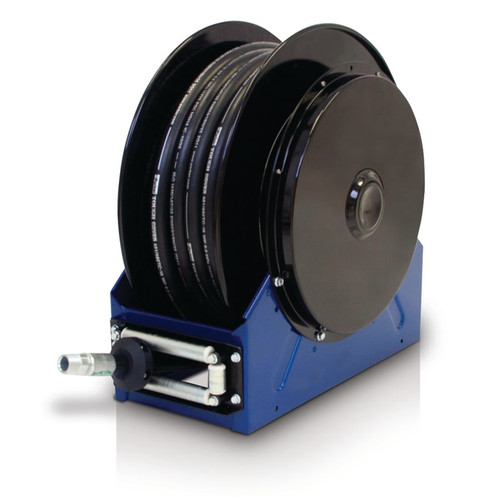

Graco’s industrial-grade LDX hose reel offers incredible value for cost-conscious workshops. Its all-metal frame and specially crafted, long-lasting components provide consistent release and retraction.
Designed for smaller garages, independent repair facilities and industrial manufacturing environments.
- Dual Pedestal Frame - Ribbed metal for increased stability and robustness.
- External Swivel Housing - Quickly access swivel seal for faster repairs.
- Ball Bearing Swivel - Swivel designed with internal ball bearings reduces friction and ensures smooth operation.
- Adjustable Arm - Easily change to one of six arm positions to fit your application.
- Large Hose Capacity with Small Profile - Compact design accommodates up to a 50 foot (15 meter) hose to meet a wide variety of application requirements.
Â
Technical Specifications
| COLOR | Grey |
|---|---|
| DRY WEIGHT (LB) | 40.7 |
| HOSE INSIDE DIAMETER (IN) | 3/8 |
| HOSE INSIDE DIAMETER (MM) | 9.525 |
| HOSE LENGTH (FT) | 50 |
| HOSE LENGTH (M) | 15 |
| INLET SIZE (IN) | 3/8 |
| INLET SIZE (MM) | 9.525 |
| INLET THREAD TYPE | NPT |
| MAXIMUM TEMPERATURE (°C) | 65 |
| MAXIMUM TEMPERATURE (°F) | 149 |
| MAXIMUM WORKING PRESSURE (PSI) | 300 |
| MINIMUM TEMPERATURE (°C) | -26 |
| MINIMUM TEMPERATURE (°F) | -14.8 |
| MOUNT LOCATION | Truck Mount, Bench Mount |
| OUTLET SIZE (IN) | 3/8 |
| OUTLET SIZE (MM) | 9.525 |
| OUTLET THREAD TYPE | NPT |
| OVERALL HEIGHT (IN) | 19 |
| OVERALL HEIGHT (MM) | 483 |
| OVERALL LENGTH (IN) | 17.5 |
| OVERALL LENGTH (MM) | 445 |
| OVERALL WIDTH (IN) | 9.4 |
| OVERALL WIDTH (MM) | 239 |
| WETTED PARTS | Hybrid Polymer, Brass, Nitrile Rubber |
| APPLICATION | Air, Water, Antifreeze, WWS |
| TYPE | Spring-Rewind Reel |
| RECOMMENDED ENVIRONMENT | Indoor |
| FRAME TYPE | Dual Pedestal |
| REEL THREAD TYPE | NPT |
| INLET THREAD GENDER | Male |
| OUTLET THREAD GENDER | Male |
| RECOMMENDED FLUID TYPE | 空气;水;防冻剂;挡风玻璃清洗液, Air, Aire, Agua, Anticongelante, WWS, Water, Antifreeze, WWS |
| HOSE REEL TYPE | Reel with Hose |
| MODEL | LDX |
| INCLUDES_HOSE | Yes |
