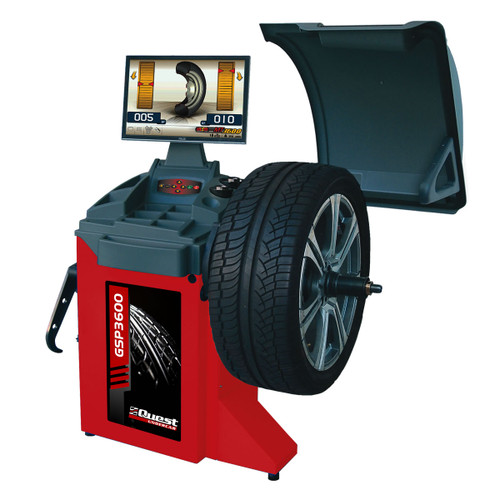

Performance Touch 3-D Wheel Balancer has all the essential power features for fast, accurate wheel balance in any application.
- Automatic Wheel Positioning System: This innovative feature allows for precise placement of clip-on and adhesive weights, ensuring efficient and accurate wheel balancing.
- The user-friendly graphic interface, together with the latest touchscreen technology on 22” widescreen monitor simplify and speed-up all operations and program selection.
- Digital gauge for the acquisition of the diameter and distance
- Automatic Wheel Position for Clip-on and Adhesive Weights
- Electromagnetic Braking for precise weight application
- Sonar automatic sensor for 3-D measurement of wheel width
- Integrated LED spotlight to light-up the work area and make it easier to clean the rim, and apply the counterweights.
- The EASY WEIGHT program suite including, among others, also the MINIMUM WEIGHT software, comes as standard.
- Space-saving wheel guard designed to allow wheel balancer wall mounting as well mounting wheels up to a maximum diameter of 44
- Multi-function Button speeds up the different work programs.
- Ergonomic Weight Tray provides functional large trays to hold the different types of counterweights and tools.
- Comes standard with basic cone package, speed clamp, calibration tool.
*Optional 8 Collet Package available upon request.
Balancing speed | 75 / 85 / 98 rpm |
Maximum wheel weight | 75 kg |
Resolution | 1 g |
Average measuring time | 5,5 s |
Shaft diameter | 40 mm |
Rim width setting range | 1,5 - 20 " |
Rim diameter setting range | 1 - 35 " |
Rim diameter measurable with the sensor | 10 - 28 " |
Maximum wheel width | 560 mm |
Maximum wheel diameter | 1118 mm |
