Emax EP10DW120V1 : 10 HP V4 76 CFM 120 Gal Horizontal 1P 2-Stage DUPLEX NEMA Compliant Weather Resistant w/Silent Air

Name: Emax EP10DW120V1 : 10 HP V4 76 CFM 120 Gal Horizontal 1P 2-Stage DUPLEX NEMA Compliant Weather Resistant w/Silent Air
Brand: Emax
SKU: EP10DW120V1
Price: 10299 USD
Availability: InStock

Emax

$10,299.00

Write a Review

SKU:: EP10DW120V1
Voltage:: 208V
Voltage:: 230V
Motor:: Duplex
HP:: 20 HP
Phase:: 1 Phase
CFM:: 71-80
Tank Size:: 120 Gal
Tank Orientation:: Horizontal
Quite:: Quite

Product Description

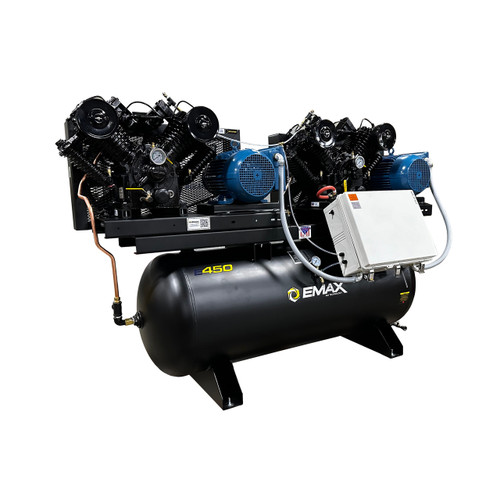

EMAX EP10DW120V1 NEMA Compliant Weather Resistant DUPLEX Silent Air 10HP V4 76CFM 1 Phase 2-Stage 120 Gal. Horizontal Stationary Electric Air Compressor-W/ Pressure Lube Pump , Isolator Pads, Belt Tensioner, Auto Drain, alternating switch

EMAX Compressor has added duplex Alternating air compressors to the EMAX family. The benefits to these compressors are the alternating switch that will allow the units to alternate from one pump to another. The unit will pump up to set pressure, then under the next start-up sequence the opposing pump will start. This eliminates excessive running and allows the pumps to cool under heavy loads. These units also have a feature that if one pump will not maintain set pressure and not keeping up with demand, then both units will come on and run until the unit hits the pressure setting after which it will go back into normal alternating mode. There are (2) of our low RPM solid cast iron pumps paired with (2) 1750 RPM TEFC motors, (2) Magnetic Starters with a relay switch all installed on our ASME certified 120 Gallon Horizontal tanks.

Specifications

20 HP (2 x 7.5)
230 Volt Single Phase
76 CFM @ 100 psi
175 psi Max Pressure
Industrial 1750 RPM TEFC Motors
NEMA 4 Enclosures
Pump RPM 640
Pressure Lubricated Cast Iron Pumps
Low Oil Shut Down
Alternating Controls
Power is connected to two Magnetic Starters
Automatic Tank Drain Included
120 Gallon ASME Tank

Specifications
Specifications

Specifications

CFM @ 100 PSI	76
Max Pressure (PSI)	175
Compressor Stage	Two
Pump RPM	640
Motor Phase	Single
Voltage	230 V
Tank Size	120 Gal ASME
Tank Drain	Automatic

Specifications

Voltage 208V

Voltage 230V

Motor Duplex

HP 20 HP

Phase 1 Phase

CFM 71-80

Tank Size 120 Gal

Tank Orientation Horizontal

Quite Quite
