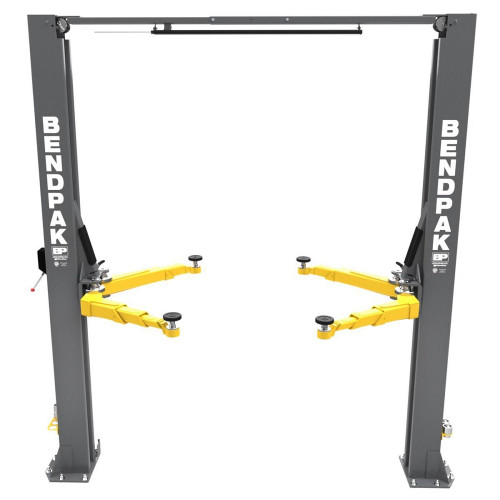

BendPak 10AP : 10,000 LB Symmetric 2-Post Lift

Specifications

Capacity

• Lifting Capacity
• 10,000 lbs. (4,536 kg)

Rise

• A.Rise
• 69" (1,753 mm)
• B.Rise + Pad
• 72.25" (1,835 mm)
• D.Min Height + Pad
• 4" (102 mm)
• Time to Full Rise
• 45 seconds

outside dimensions

• E.Height Overall
• 145 " (3,683 mm)
• F.Width Overall
• 135" (3,429 mm) or 145" (3,683 mm)
• G.Outside Columns
• 127" (3,226 mm) or 137" (3,480 mm)

Inside dimensions

• H.Inside Columns
• 108.25" (2,750 mm) or 118.25" (3,004 mm)
• I.Drive-Thru Clearance
• 92" (2,337 mm) or 102" (2,591 mm)
• J.Floor to overhead switch
• 139.25" (3,537 mm)

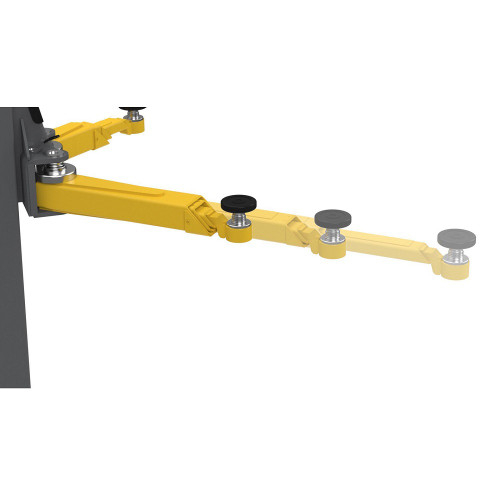

Arms & pads

• K.Front arm reach (MIN)
• 24.5" (622 mm)
• K.Front arm reach (MAX)
• 50" (1,270 mm)
• L.Rear arm reach (MIN)
• 32" (812 mm)
• L.Rear arm reach (MAX)
• 59.25" (1,504 mm)
• max load per arm
• 2,500 lbs. (1,134 kg)
• noise
• <70 dB

shipping

• Shipping Dimensions
• 150" x 24" x 28" (3810mm x 610mm x 711mm)
• Weight
• 1729.00
