Beissbarth Titan 360° | 3-D Alignment System w/ Q.Grip Adapters

Q.Lign 360° with extendable wall bracket, Q.Grip wheel holder and tablet operation creates 360° space around the measuring station.

Ultimate productivity - vehicle by vehicle

Q.Lign 360° is based on the existing Q.Lign platform and focuses entirely on wheel alignment. With Q.Lign 360°, workshops set the bar even higher and can thus exploit their full service potential.



Measurements at the highest level

• Camera beam measures permanently from a height of 2.8 meters
• No engine, no winch, no wear and tear
• No up, no down, no injuries or damage
• No procedure, regardless of whether short or long wheelbases

Everything in perfect view

• Four wheels, four cameras
• Separate camera for the rear axle for more precise track calculation on the front axle
• Measure and adjust stage heights from 0 to 2 meters at any time

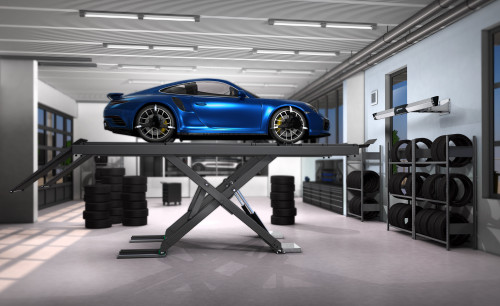

Never be cornered again

• Attached to the wall and operated via tablet
• No carriage, no column
• Measuring from 1.8 to 4.2 meters to the front axle
• Free space around the entire stage

Work smarter, not harder

• Measuring with every panel at all wheel positions reduces set-up times and clamping errors
• Active MEMS Technology for uncompromising accuracy
• Steering angle can be comfortably at ground level without a stool or ladder
• Remote access to logs from anywhere in the workshop

The world's first web-based wheel alignment device:

• Replaces the entire trolley with PC and creates more space
• Up to 95% less power consumption than PC-based systems
• Display the software on any TV, PC, laptop, tablet or smartphone
• Intuitive software, optimized processes, more productivity
• Easy integration of Q.Lign into the workshop network

Space requirements

• At least 2800mm height
• At least clear width of 2800mm for four-post lifts

Scope of Delivery

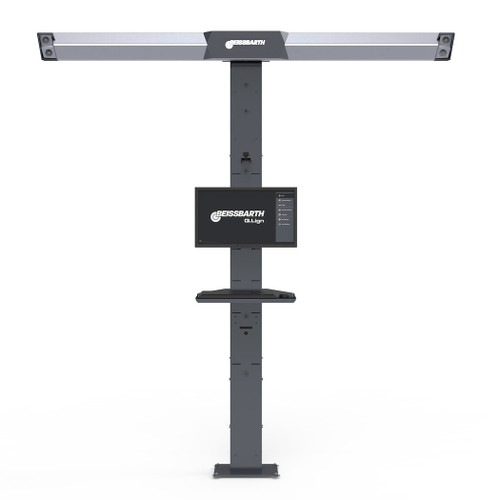

• Measuring bar with 4 cameras
• Q.Lign display module
• 4x Q.Grip wheel holder
• Wall mount for Q.Grip
• 4x measuring boards with AutoID
• tablet
• Brake tensioner and steering wheel lock
• 2x rotating base at the front with filling pieces
• Power box for power supply
• Extendable wall mount
